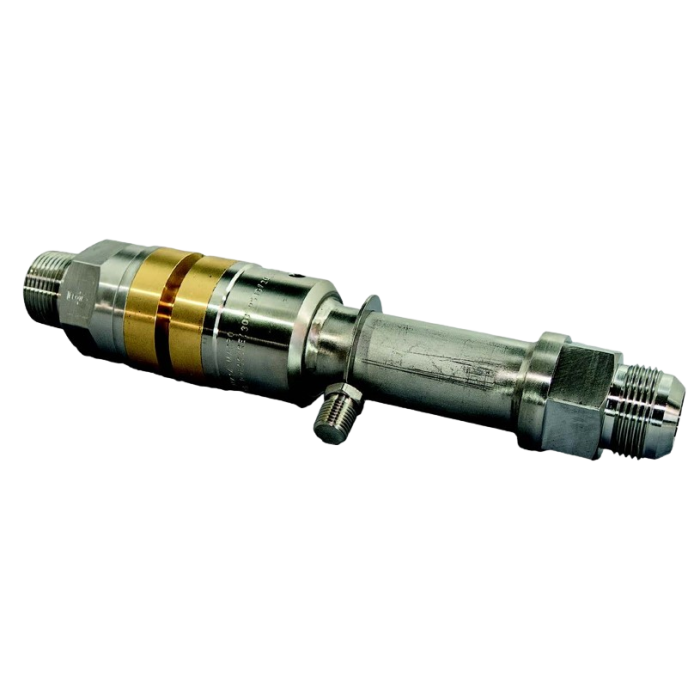

LNG Vent/Fill Breakaway VFL Series

The VFL Series are LNG vent/fill breakaway are designed to prevent pull away accidents, protect fill station/dispenser and eliminate unwanted product release.

Key Features:

• Max internal pressure 300 psig/20.7 barg (while fueling)
• Max system pressure 550 psig/38 barg (static)
• Temperature range -320°F to 150°F ( -196°C to 65°C)
• Fill Breakaway Flow Capacity 50 GPM
• Vent Breakaway Flow Capacity 10 GPM
• 100% pressure tested
