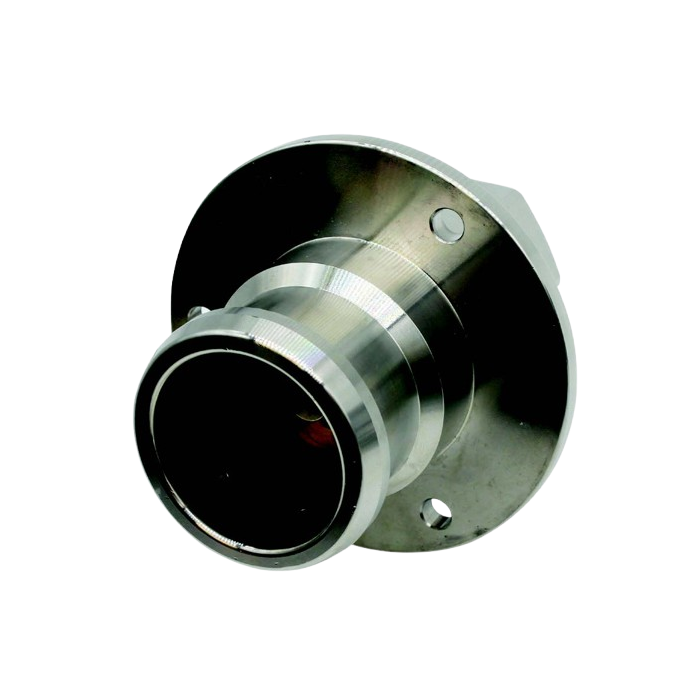

LNG Male Fueling Receptacle MFR50 Series

When mounted on the tank of a Liquid Natural Gas fueled vehicle, the LNG Tank Receptacle offers a safe and secure connection with the CryoMac3 50M LNG Nozzle. In addition to providing a perfect fit with the CryoMac3 50M LNG Nozzle, the LNG Tank Receptacle is engineered to offer the same safe and secure connection with many other LNG Nozzles.

Key Features:

• Max internal pressure 300 psig /20.7 barg (while fueling)
• Max system pressure 550 psig /38 barg (static)
• Flow capacity 50 GPM
• Available in the more standard inlet connections
• Temperature range -260F to 150F (-162C to 66C)
• 100% pressure tested
• Global certifications
• 66% lower LNG emissions during disconnect
• Easy service
• Different outlet available upon request
• Robust poppet design and protection of seat for longer life
• Patent pending
