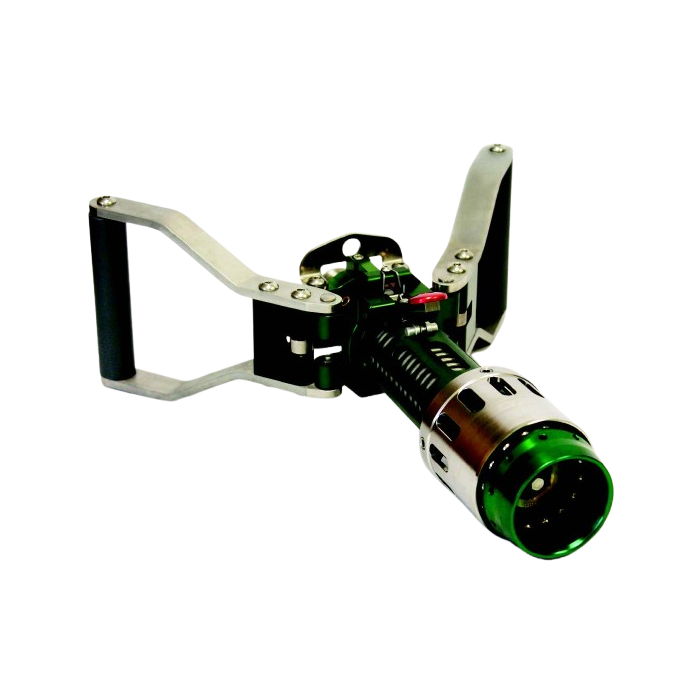

CryoMac ® 3 50 GPM LNG Fueling Nozzle

The CryoMac 3 is a high technology LNG fueling nozzle, unique with safety stop to guarantee a safe operation and prevents safety stop from resetting prematurely during nozzle removal.

Key Features:

• Fluid Compatibility: LNG, Methane and LN2
• Maximum Pressure: 500 psig/34.5 barg
• Burst Pressure: greater than 1,500 psig/103.5 barg
• Rated Flow: 50 GPM @ 250 psig (LNG)
• Nozzle Weight: 10 lbs
• Port Size: 1” Male SAE 37 degree flare (SAE J514) (1 5/16 -12 thd.)
• Operating Temperature: -320°F to +140°F / -195°C to 60°C
• 3rd Party KIWA Testing in accordance with ISO 12617
• 100% pressure tested
• Improved positive “safety stop” does not release until triggered after venting trapped gas and before disconnecting the nozzle for added safety and operator protection
• Improved longer service life of the receptacle end seal
• Reconfigured to be more compatible with Macro and other receptacle designs
• Ball bearing design “guides and locks” the nozzle in place during fueling for easier connections
• Designed to prevent freezing onto the receptacle utilizing nonmetallic bearings, air gaps and insulation
• Easy access for maintenance on the receptacle end seal, poppet assembly and seat
